ONSERT® PortableONSERT® Portable is a battery-operated manual installation tool which is suitable for manual processing.

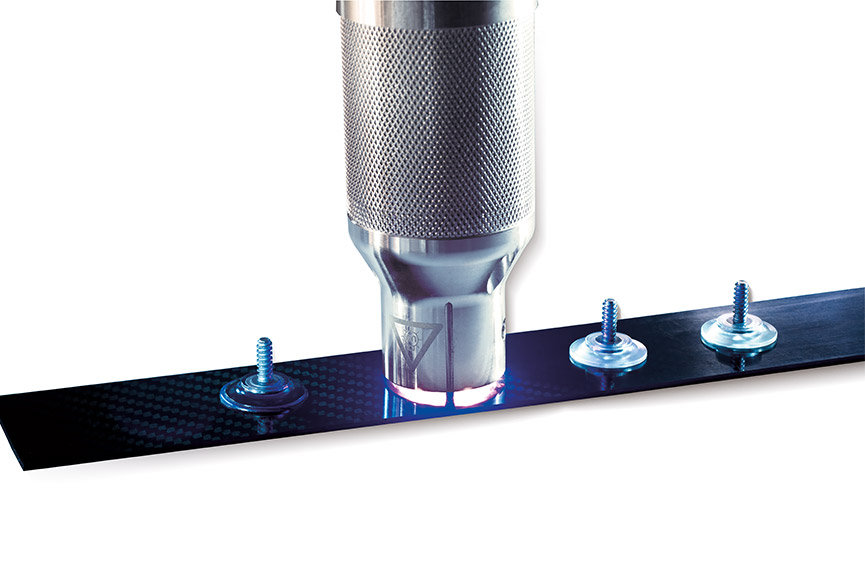

The joint between the workpiece and the ONSERT® fastener is produced using a light-curing adhesive. This is manually applied to an ONSERT® fastener, which is then placed in the holder in front of the light source and held in position there by a magnet or mechanical means. An integrated protective shield guarantees the safety of operators.
A green LED on the base of the device indicates that the device is in the correct home position. Simply position the device, press down, and start the joining process by pressing the start button. The light source comes on for a specified exposure time and the adhesive hardens.
The exposure time and light intensity depend on the adhesive used and the material of the workpiece. The relevant parameters can be set on a PC and transferred to the ONSERT® Portable by USB cable.
Advantages
Ergonomic two-component housing: secure grip and non-slip
Tailored lamp geometry ensures optimal curing
USB connection for process monitoring
3-position pushbutton for fast and reliable positioning
Easy handling
Flexibility
Lithium-ion battery
We will be glad to offer you automated solutions for the processing of ONSERT® fasteners.
Please contact our Application Technology department concerning this matter.
ONSERT® Portable in practical carry case
Contents: setting tool, rechargeable battery, adhesive metering gun and accessories
ONSERT® Basic
Light but powerful. Materials can be used in ever decreasing thicknesses. However, lightweight construction methods make the use of conventional mechanical or thermal joining techniques more difficult. The resulting forces or temperatures can cause visual or technical damage to customer components. Moreover, the lightweight materials are often anisotropic in their mechanical features, whereby kerfs should be avoided.
The solution: ONSERT® Basic. Fasteners such as screws, threaded bushes or snap connectors are provided with a transparent plastic sheath. The geometry will be chosen deliberately, so that a sufficient bonding surface is available.
Broad range of options
Generally, all geometries which can be produced by injection moulding are possible. Screwed connections on plastic mouldings, detachable and non-detachable snap connections, adhesive SNAPLOC® fasteners, etc. can be applied to materials such as CFRP, FRP, glass, lacquer, cathodic dip coating, plastic such as PC‑ABS, PA and blends.
Which adhesive is suitable?By means of several test on the original component, the corresponding adhesive will be defined. They should be chosen individually for your substrate and field of application in consultation with DELO and BÖLLHOFF. All used adhesives are DELO-PHOTOBOND.
DELO-PHOTOBOND
Light-curing acrylate
Curing in short cycle times
Universal adhesion to various substrates
Application-specific mechanical properties (ultimate elongation, glass-transition temperature, Young's modulus)
DELO and BÖLLHOFF are pleased to assist you during the entire development process.
pastingAdhesion process
1. Dispensing
2. Joining
3. Curing
