Part No.: EL-W220
Availability: 10 items available

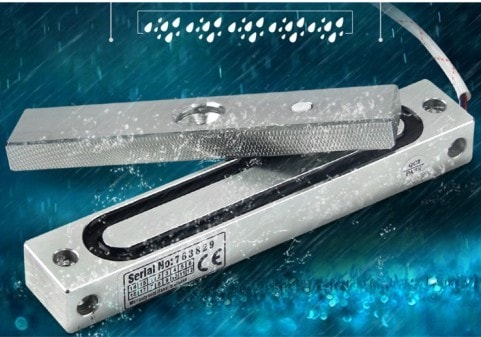

Waterproof Electromagnetic lock ( 220lbs)
Fail Safe
Power on to lock

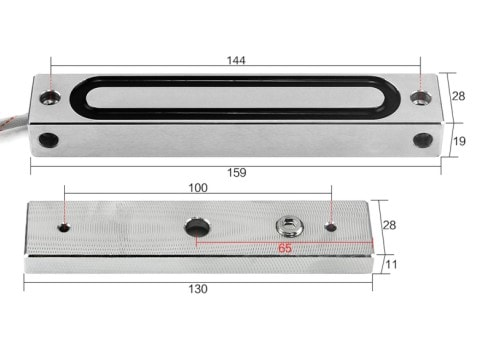

Lock dimensions
160L X 28W X 17H mm
Armature plate dimensions
130L X 28W X 8H mm
Holding force
110Kg(220Lbs)
Current Draw
12V200mA, 24V/100mA
Cover Finish
Anodized aluminum housing
Lock Finish
Zinc
Armature Plate Finish
Weight
1.0 KG
Surface Temp
≤+20℃
Operating Temp
(-10)~+55℃(14-131F)
Humidity
0~95%(non-condensing)
Application

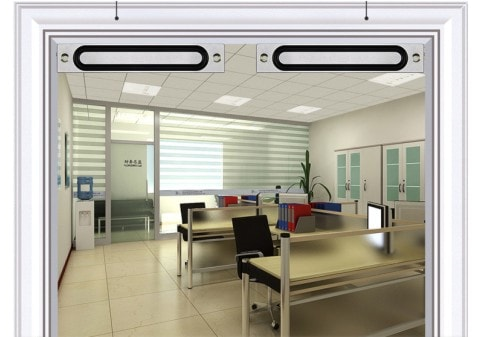

Wooden door , Glass door ,Metal door , Fireproof door
